3.2.9 PatRx

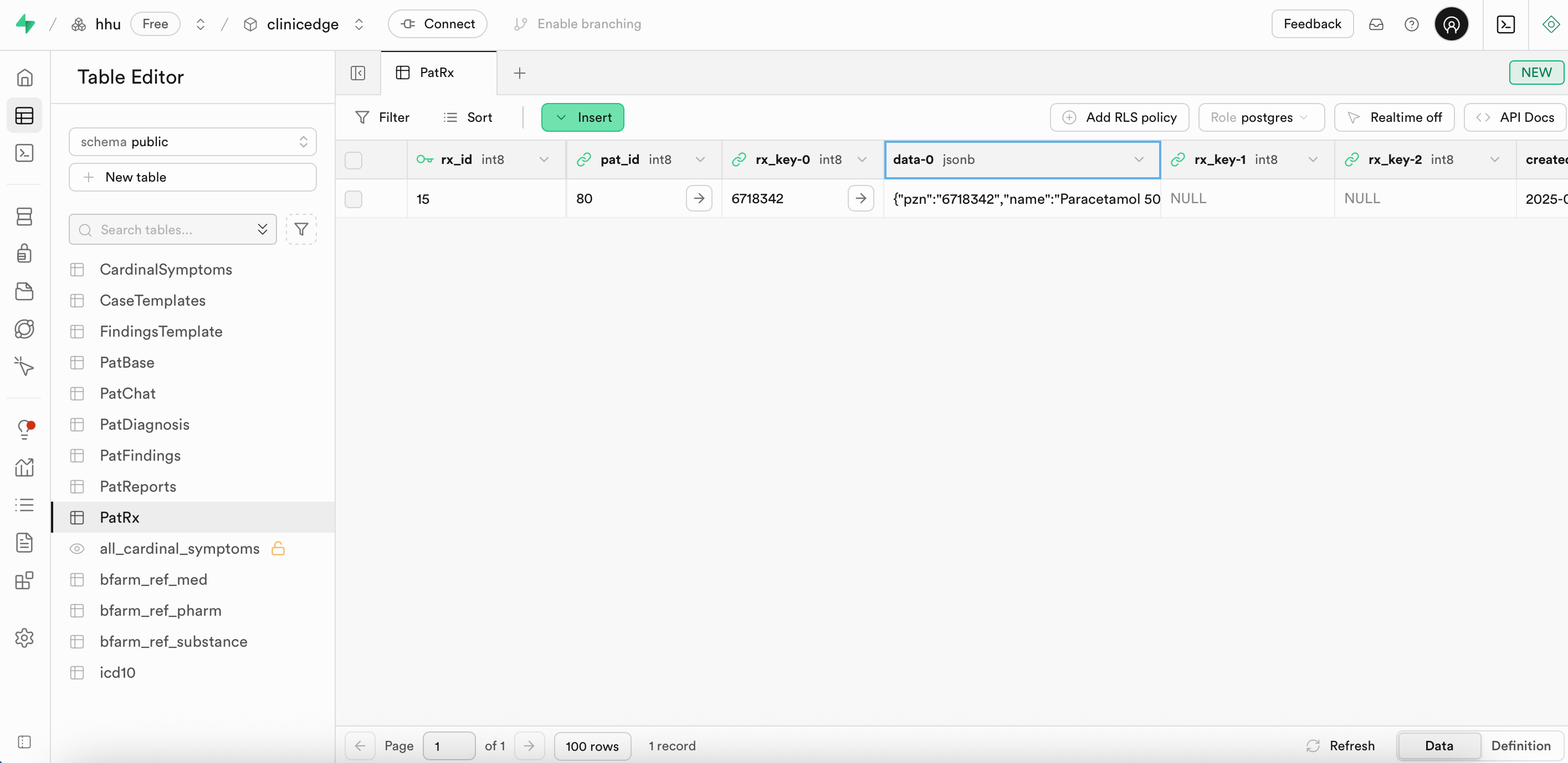

The PatRx table in Supabase stores all prescriptions for each patient case. Each medication is linked to a patient via pat_id and receives a unique rx_id. The table supports storage of up to three medications, with metadata including the medication name, Pharmazentralnummer (PZN), the medication regimen and an internal rx_key.

Table Structure

Column	Format	Type	Description
pat_id	bigint	number	Internal ID of the patient receiving the prescription (as in PatBase)
rx_id	bigint	number	Unique prescription ID
data-0	jsonb	json	Metadata for medication 1 (e.g., ppn, name, regime, rx_key)
data-1	jsonb	json	Metadata for medication 2 (e.g., ppn, name, regime, rx_key)
data-2	jsonb	json	Metadata for medication 3 (e.g., ppn, name, regime, rx_key)
rx_key-0	text	string	Internal medication key for medication 1
rx_key-1	text	string	Internal medication key for medication 2
rx_key-2	text	string	Internal medication key for medication 3

Example medication metadata:

{
  "ppn": "{"17976544,
  "name": "Paracetamol 500 mg (Tabl)",
  "regime": "1-0-0",
  "rx_key": "6718342"
}

Integration within the System

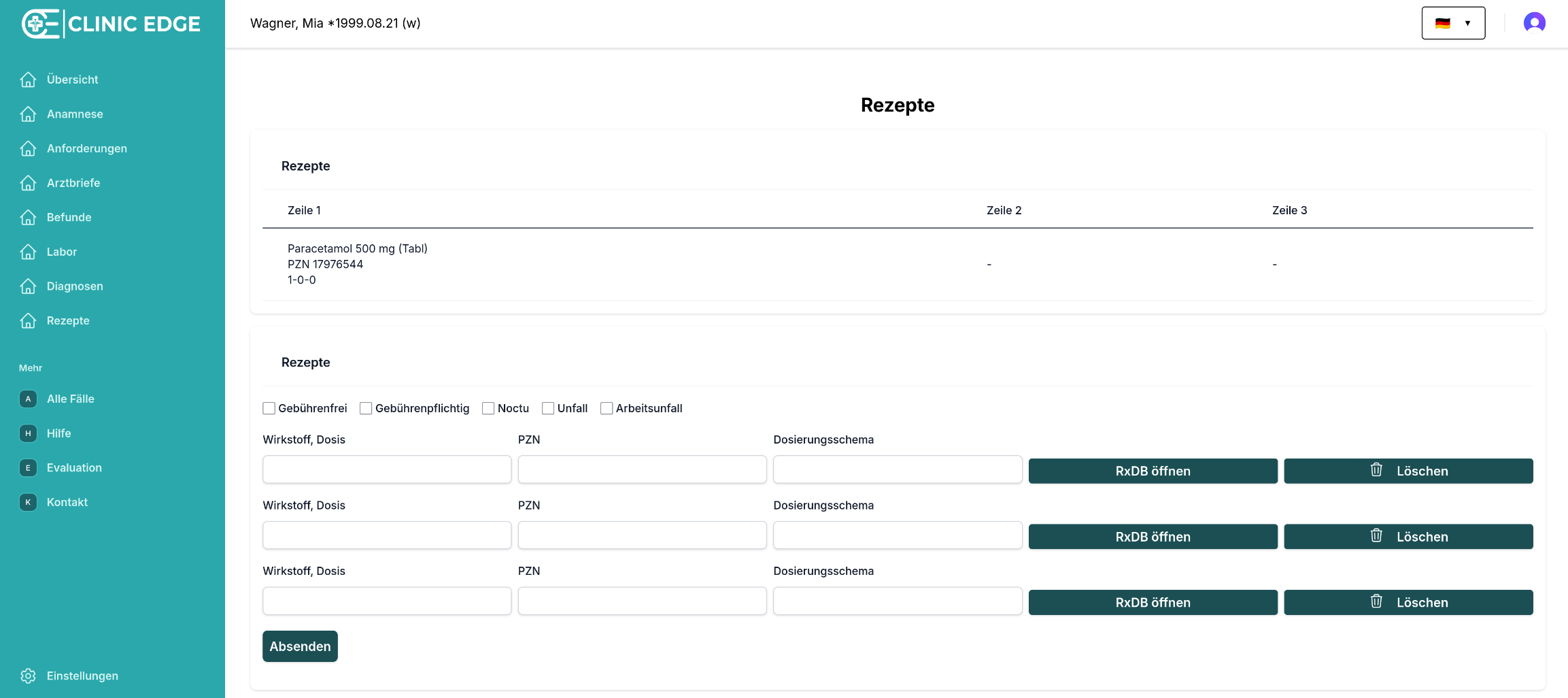

Medications are added to the PatRx table using the addRx function in logic_server.js. Medication metadata includes ppn and rx_key, which are matched to ppn and id in the ref_rx table in Supabase. Each prescription is linked to the correct patient case via pat_id.
